In today’s fast-paced world of embedded systems, industrial controls, and DIY electronics, a reliable, easy-to-integrate display is essential. The Chenghao Optoelectronic HDMI TFT Display series delivers exactly that: plug-and-play HDMI connectivity combined with bright, high-quality TFT panels that work straight out of the box with Raspberry Pi, Windows PCs, Linux systems, media players, and more. Whether you need a compact 2.4-inch screen for a portable project or a sunlight-readable 10.1-inch panel for outdoor instrumentation, the Chenghao Optoelectronic HDMI TFT Display lineup offers sizes from 2.4 inches up to 12.3 inches with resolutions, brightness levels, and touch options to suit virtually any application.
What Makes an HDMI TFT Display the Perfect Choice?
A traditional TFT LCD module usually requires complex driver boards, level-shifting circuits, and software configuration. A true HDMI TFT Display, however, includes a dedicated HDMI-to-LVDS (or RGB) driver board built in, so you simply plug in an HDMI cable and power the module — the image appears instantly. No extra soldering, no custom kernel drivers, no headaches.
Chenghao Optoelectronic takes this convenience further by pairing the HDMI driver with high-quality IPS and TN panels that deliver vivid colors, wide viewing angles (up to 80°/80°/80°/80° on IPS models), and brightness levels up to 1000 cd/m² standard — with sunlight-readable options reaching 2800 cd/m² available. Wide operating temperature range (-20 ~ +70 °C) and RoHS compliance make every Chenghao Optoelectronic HDMI TFT Display ready for industrial, automotive, marine, and outdoor environments.
Key Features of Chenghao Optoelectronic HDMI TFT Display Series
- True Plug-and-Play HDMI Interface – Standard HDMI input plus integrated driver PCB (compact sizes like 46×50×5 mm on 10.1-inch models) means instant compatibility with Raspberry Pi 5/4/3, Windows PCs, Linux boxes, Android TV sticks, and most HDMI sources.
- IPS and High-Brightness Options – Full 178° viewing angles on IPS models, high brightness (500–1000 cd/m² standard, higher on request), anti-glare surface treatment for sunlight readability.
- Touch Capability – Capacitive (CTP) or resistive touch with USB interface available on most models; touch works natively under Windows, Linux, and Raspberry Pi OS.
- Wide Temperature & Rugged Design – Operate reliably from -20 °C to +70 °C, store from -30 °C to +80 °C — perfect for harsh environments.
- Customization Flexibility – Chenghao engineers can modify the HDMI driver PCB shape, connector positions, add VGA/AV inputs, or adjust brightness/touch for your exact enclosure.
Popular Models in the Chenghao Optoelectronic HDMI TFT Display Lineup

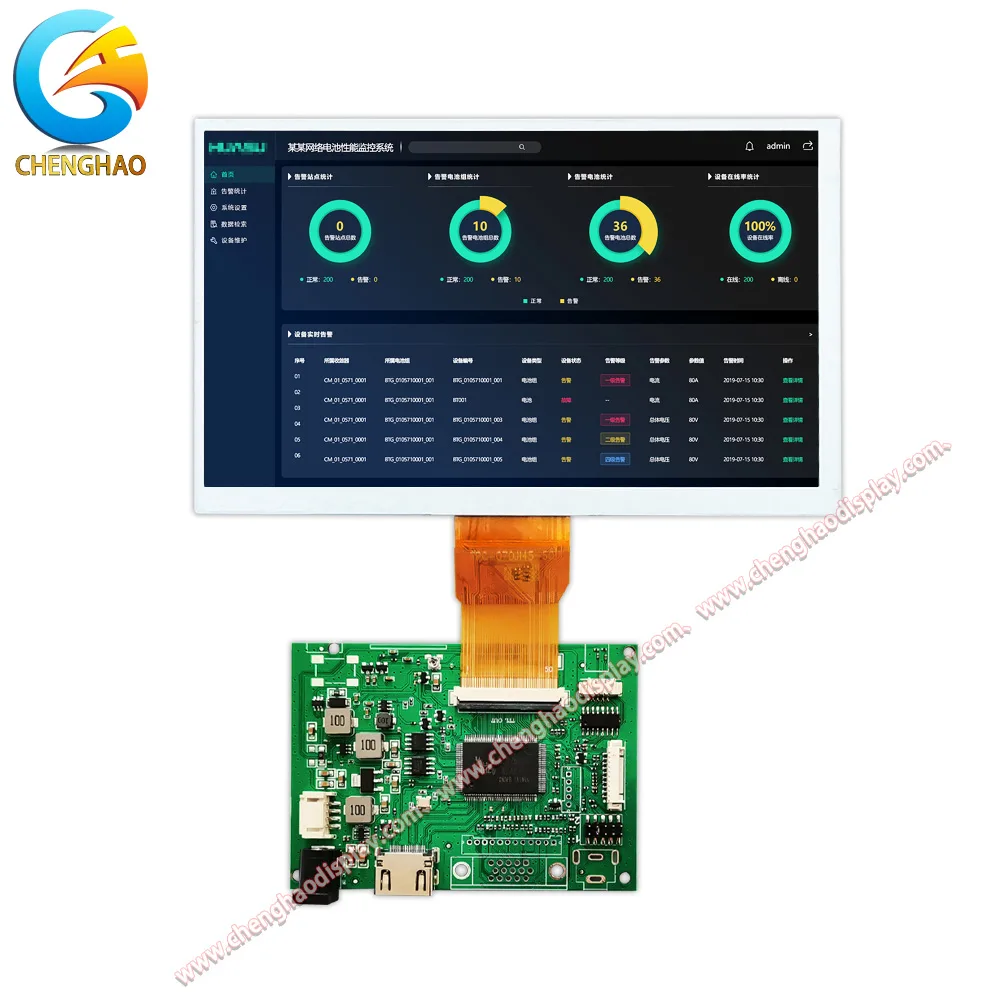

- 7-inch CH700WS10E HDMI TFT Display Resolution 1024×600 | IPS panel | 1000 cd/m² brightness | 80/80/80/80 viewing angles | Pure HDMI input | Ideal for industrial HMI, portable monitors, and Raspberry Pi desktops.
- 10.1-inch CH101WX05C-CT HDMI TFT Display Resolution 800×1280 (portrait or landscape) | IPS panel | 300 cd/m² (higher brightness versions available) | Capacitive touch via USB | Ultra-slim design | Widely used in smart home controls, medical devices, and Raspberry Pi tablets.
- 3.5-inch CH350QV12A-CT-PA Resolution 320×240 | TN panel with capacitive touch | LVDS + USB interfaces | Compact size perfect for handheld instruments and retro gaming builds.
- 2.4-inch CH240QV68A Series Resolution 240×320 | Optional resistive or capacitive touch | Extremely small footprint with full HDMI driver — excellent for mini arcade machines, IoT dashboards, and wearable projects.
Larger sizes up to 12.3 inches are also available for automotive clusters, marine navigation, and digital signage applications.
Versatile Applications of Chenghao Optoelectronic HDMI TFT Display
- Raspberry Pi & Single-Board Computer Projects – The #1 choice among makers because the display works instantly with zero configuration.
- Industrial HMI & Automation – High brightness, wide temperature range, and rugged build survive factory floors and outdoor kiosks.
- Medical & Instrumentation – Accurate colors, reliable touch, and clean HDMI signal for monitors and diagnostic equipment.
- Smart Home & IoT – Wall-mounted controls, security camera viewers, and appliance interfaces.
- Portable & Battery-Powered Devices – Low power consumption and lightweight design extend battery life in handheld testers and field devices.
- Automotive & Marine – Vibration-resistant, sunlight-readable screens for dashboards and navigation systems.
Why Choose Chenghao Optoelectronic HDMI TFT Display?
Chenghao Optoelectronic is not just a display assembler — it is a full-solution LCD module manufacturer with its own ISO9001-certified factory. Every Chenghao Optoelectronic HDMI TFT Display undergoes 100 % testing before shipment, comes with detailed datasheets, Raspberry Pi sample images, and lifetime technical support. Unlike generic “HDMI boards” sold online, Chenghao provides true one-stop customization: change the FPC length, add optical bonding, modify the driver board shape, or even integrate your own MCU — all at competitive factory-direct pricing.
Elevate Your Project with a Genuine Chenghao Optoelectronic HDMI TFT Display
If you are tired of fighting with incompatible driver boards and flickering screens, switch to the proven reliability of a Chenghao Optoelectronic HDMI TFT Display. Plug in HDMI, apply power, and watch your project come to life in seconds.
